12G-SDI 1×5
Reclocking Distribution Amplifier

CB-8130

The CB-8130 is a miniature, low-cost 1×5 12G/6G/3G/HD/SD-SDI re-clocking distribution amplifier. Featuring five separately buffered SDI outputs, the CB-8130 provides automatic input detection, re-clocking and cable equalization.

▶ Features & Benefits
▶ Technical Information
▶ Related Products

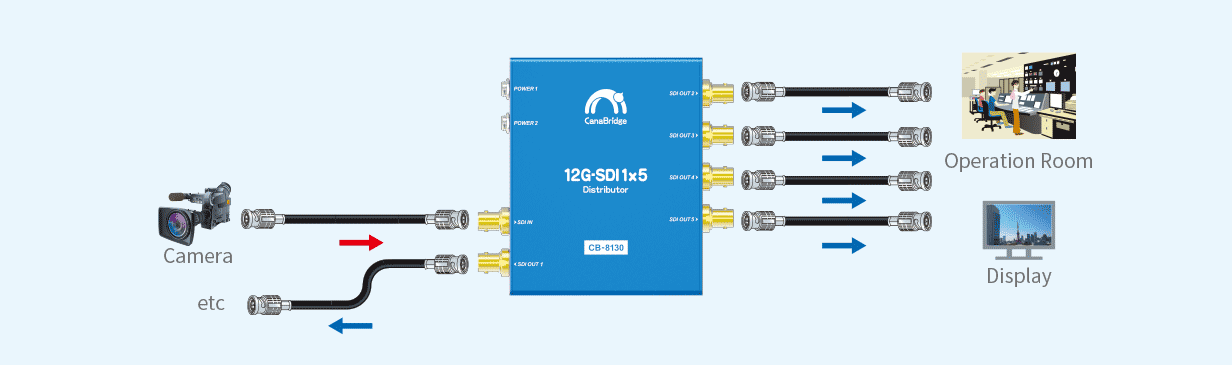

▶ Typical application

Features & Benefits

12G/6G/3G/HD/SD-SDI multi-rate signal processing
5 buffered and re-clocked outputs
Support DVB-ASI signal (OUT1,4,5)
Automatic cable equalization and signal retiming
All ancillary data is passed to the outputs
LED indicators for power and signal lock
Threaded locking power connector

Dual redundant power supplies
Detachable bracket design for wall mounting
CB-8130 is a compact, one input, five output distribution amplifier for SDI and multi-rate SDI video signals up to 4K60Hz(12 Gbps). Supported Output1, Output4 and Output5 support DVB-ASI signal.
Equalized on the SDI input and reclocking on the SDI outputs to maximize performance.

Technical Information

Connections	SDI Video Input	1×SD/HD/3G/6G/12G-SDI (75Ω BNC)
	SDI Video Output	5×SD/HD/3G/6G/12G-SDI/ASI (75Ω BNC)
	Power Input	Dual DC Power

Functions and Standards	SDI Video Rate	SD/HD/3G/6G/12G-SDI
	SDI Auto Switching	Automatically detects SD, HD, 3G, 6G and 12G-SDI
	SDI Standard	SMPTE ST 259, SMPTE ST 292-1, SMPTE ST 424, SMPTE ST-2081-1, SMPTE ST-2082-2 DVB-ASI

Power	Power Supply	Threaded locking DC connector
	Voltage Range	DC 6 - 23V
	Power Consumption	3W (Max)

Physical Specifications	Dimension	125.5×102×27.5mm
	Net Weight	310g
	Gross Weight	950g

Environmental Specifications	Operating Temperature	0~60 deg C
	Storage Temperature	-30~70 deg C
	Relative Humidity	0%~90% non-condensing

*Information in this document is subject to change without notice.
