3G-SDI to HDMI & AV Scaling Converter

CB-2021

CB-2021 is an exquisite and professional SDI converter to convert SDI signal into HDMI and AV signals at the same time. The output formats are responding to up / down scaling and frame rate conversion as well as signal pass through.
The functions of de-interlacing and seamless conversion are equipped for eliminating jitters.
Also, AES/EBU or Analog Audio signal can be embedded or de-embedded.
All the functions can be easily set by the built-in DIP switches or PC via USB.
CB-2021 is an ideal choice for your broadcasting and AV post production.

▶ Features & Benefits
▶ Technical Information
▶ Related Products

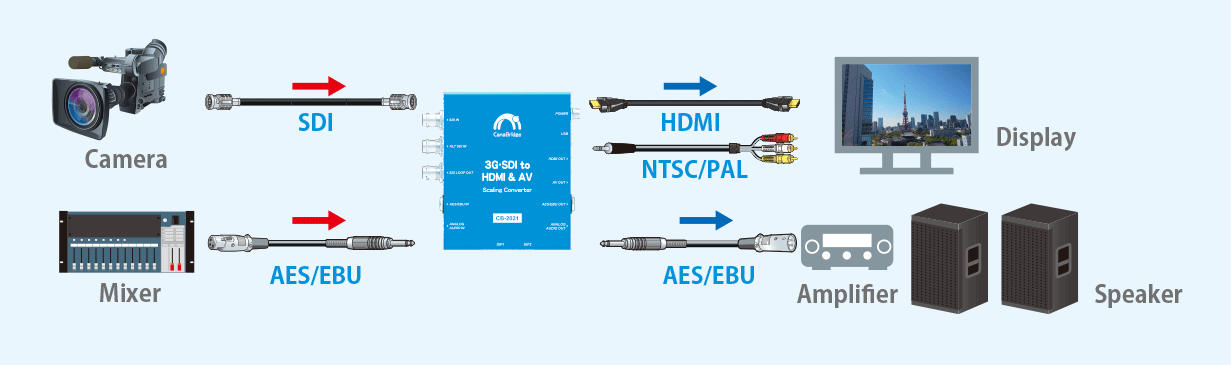

▶ Typical application

Features & Benefits

Input: 3G-SDI × 1, Alt 3G-SDI × 1, AES/EBU × 1, Analog Audio × 1 (2ch)
Output: 3G-SDI loop × 1, HDMI × 1, AV × 1, AES/EBU × 1, Analog Audio × 1 (2ch)

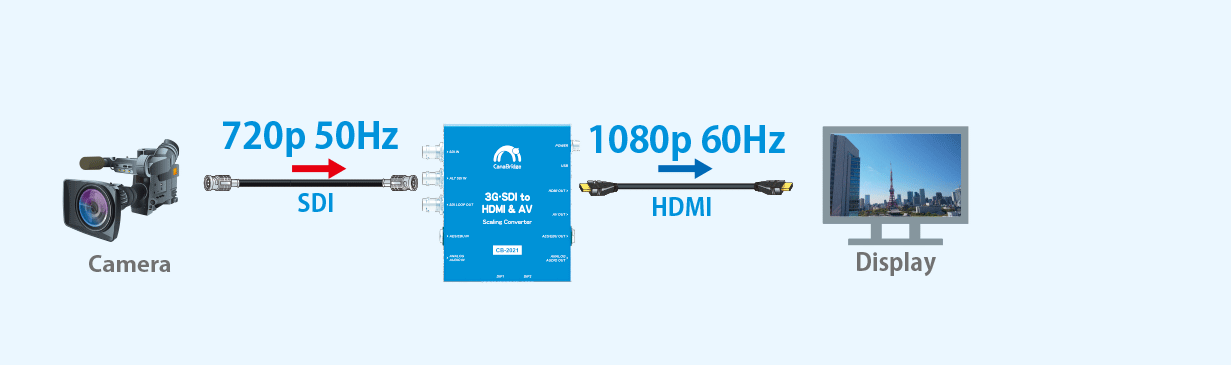

Up/down scaling and frame rate conversion
AES/EBU or Analog Audio Embedding & De-embedding
Input signal automatic detection and configuration
LED indicators for power and signal lock
Control easily via the DIP switches
Remote control for PC via USB
Threaded locking power connector
Detachable bracket design for wall mounting

By using the DIP switches, you can easily set functions with your finger, without the need for tools. It’s a quick and convenient way to change settings in outdoor applications. To remote-set the functions, you can use your computer by downloading the software via USB connection. The latest software can also be up-dated by your computer via USB connection.
The Alt SDI In is for input redundancy so that the signal can be auto-switched to the redundant SDI input to avoid the loss of video signal in case of an accident. It’s an innovative solution and especially suited for use in the studio, at live shows and at outdoor live events.

Technical Information

Connections	SDI Video Input	1×SD/HD/3G-SDI (75Ω BNC)
	SDI Redundant Input	Automatically switches over if main SDI input is lost.
	SDI Video Loop Output	1×SD/HD/3G-SDI
	HDMI Video Output	1×HDMI type A
	AES/EBU Digital Audio Input	1×1/4” (6.35mm) TRS jack
	Analog Audio Input (2ch)	1×3.5mm jack
	Updates and Configuration	Micro USB
	AV Output	1×3.5mm jack
	AES/EBU Digital Audio Output	1×1/4” (6.35mm) TRS jack
	Analog Audio Output (2ch)	1×3.5mm jack

Functions and Standards	SDI Input Format	1080p 50/59.94/60
		1080p 23.98/24/25/29.97/30
		1080psF 23.98/24/25/29.97/30
		1080i 50/59.94/60
		720p 50/59.94/60
		525i 59.94, 625i 50
	SDI Auto Switching	Automatically detects SD, HD and 3G-SDI (not support Level B)
	SDI Video Rate	SD/HD/3G-SDI
	SDI Color Space and Precision	YCbCr 4:2:2
	SDI Standard	SMPTE ST 259
		SMPTE ST 292-1
		SMPTE ST 424

Functions and Standards	HDMI Output Format	1080p 50/59.94/60
		1080p 23.98/24/25/29.97/30
		1080i 50/59.94/60
		720p 50/59.94/60
		480i 59.94, 576i 50
	AV Output Format	NTSC, PAL
	HDMI Color Space and Precision	RGB 4:4:4
		YCbCr 4:2:2
		YCbCr 4:4:4
	Analog Audio input	5dBu (Max)
	Analog Audio output	0dBu (Max)

Power	Power	Threaded locking connector
	Power Consumption	6W (Max)
	Voltage Range	DC 6-24V

Physical Specifications	Dimension	125.5×101.4×27.5mm
	Net Weight	310g
	Gross Weight	995g

Environmental Specifications	Operating Temperature	0~40 degC
	Storage Temperature	-30~70 deg C
	Relative Humidity	0%~90% non-condensing

*Information in this document is subject to change without notice.
